DELTA L+ || Crack monitoring

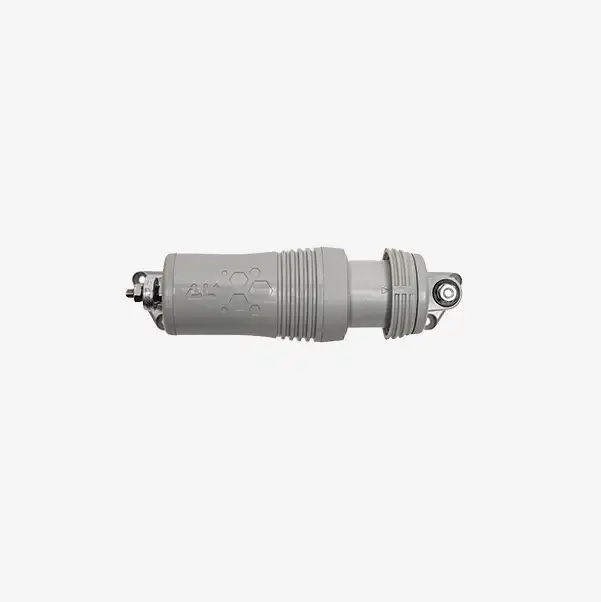

Connected Crack Gauge
The DELTA L+ is a connected sensor designed to monitor cracks with high precision and complete autonomy. It measures crack movements, whether on-site or remotely, while also recording the outside temperature, which can be accessed directly from a smartphone.
To summarize
See all features
Setting time 5 min
Autonomy From 1 to 4 years depending on the chosen frequency
Precision 0.01 mm - 1°C
4 measurement modes: opening, shear, at an angle, outcrop
Secure
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of issues.
Connected
Connect your sensors directly to a free and easy-to-use mobile app to continuously monitor all your structures.
Plug & Play
Easy and quick to install, from a few minutes to a few seconds, your sensors are fixed to all types of materials! (concrete, wood, etc.)
Connected fissure meter
The DELTA+ stands out primarily for its measurement accuracy.
This product integrates advanced technologies that allow it to perform measurements with an extremely low margin of error.
Its 30% fiber-reinforced polycarbonate casing is ultra-resistant to chemical aggression and has minimal expansion.
It enables remote monitoring of a crack with great precision, to the hundredth of a millimeter, as well as the outdoor temperature with accuracy to the nearest degree.
Connected to the FEELBAT mobile application, it allows you to monitor and analyse measurement data in real-time directly from your smartphone. With an intuitive and user-friendly interface, the application facilitates access to detailed information while offering customisation options to adjust settings according to specific needs.
Manage and centralise your projects for quicker and more informed decision-making, even on the go.
No more need to spend hours on your reports! In just a few clicks, you can generate personalised PDFs tailored to your image and needs.
The connected DELTA L+ crack sensor adapts to all types of materials: brick, metal, wood, stone, or hollow supports.
Two specific packs have been designed for the fixings: solid support or hollow support, to assist you.
The DELTA+ fixings combine practicality, robustness, and speed, ensuring a hassle-free installation and reliable performance from the outset.
Supply power
Piles 3,6V - 2,6Ah
Measurement, Precision, Resolution
Range: from 0 to 25 mm / + or - 1 mm
Precision: 0.01 mm / 1°C
Résolution : 3 µm - O,5 °C {+ou-)
Connectivity
LPWAN Network - Sigfox
Bluetooth
Internal memory
Up to 250,000 measurements
Dimensions & Weight
Dimensions : 13 cm - Ø 5,5 cm
Weight : 250g
Protection
IP66
Découvrir les packs de fixation
FULL SUPPORT
2 chevilles à béton, 4 écrous, 2 boulons, 1 capot supplémentaire, 4 vis de connexion, rotule fixation en angle, 1 rondelle
HOLLOW SUPPORT
6 nuts, 2 bolts, 8 wall plugs, 1 additional cover, 2 polycarbonate heel plates, angle fixing ball joint, 1 washer, 4 connection screws
