DELTA R || Tilt movement
Connected Bi-Axial Tilt Sensor
The DELTA R is a connected bi-axial tilt sensor that enables precise and autonomous monitoring of wall or structural tilt movements. It allows you to track inclination changes on both axes as well as the external temperature, all from your smartphone.
To summarize
View all features
Installation time 5 min
Autonomy From 1 to 7 years depending on the chosen frequency
Precision 0.005° - 0.5 T
4 modes of inclination measurement on two axes (X and Y), followed by temperature
Secure
Monitor all your infrastructures remotely and continuously with our connected sensors and receive alerts in case of problems.
Connected
Connect your sensors directly to a free and easy-to-use mobile app to continuously monitor all your structures.
Plug & Play
Easy to install, in just a few minutes to a few seconds, your sensors are fixed to all types of materials! (concrete, stone, metal, wood, etc.)
Tilt
sensor

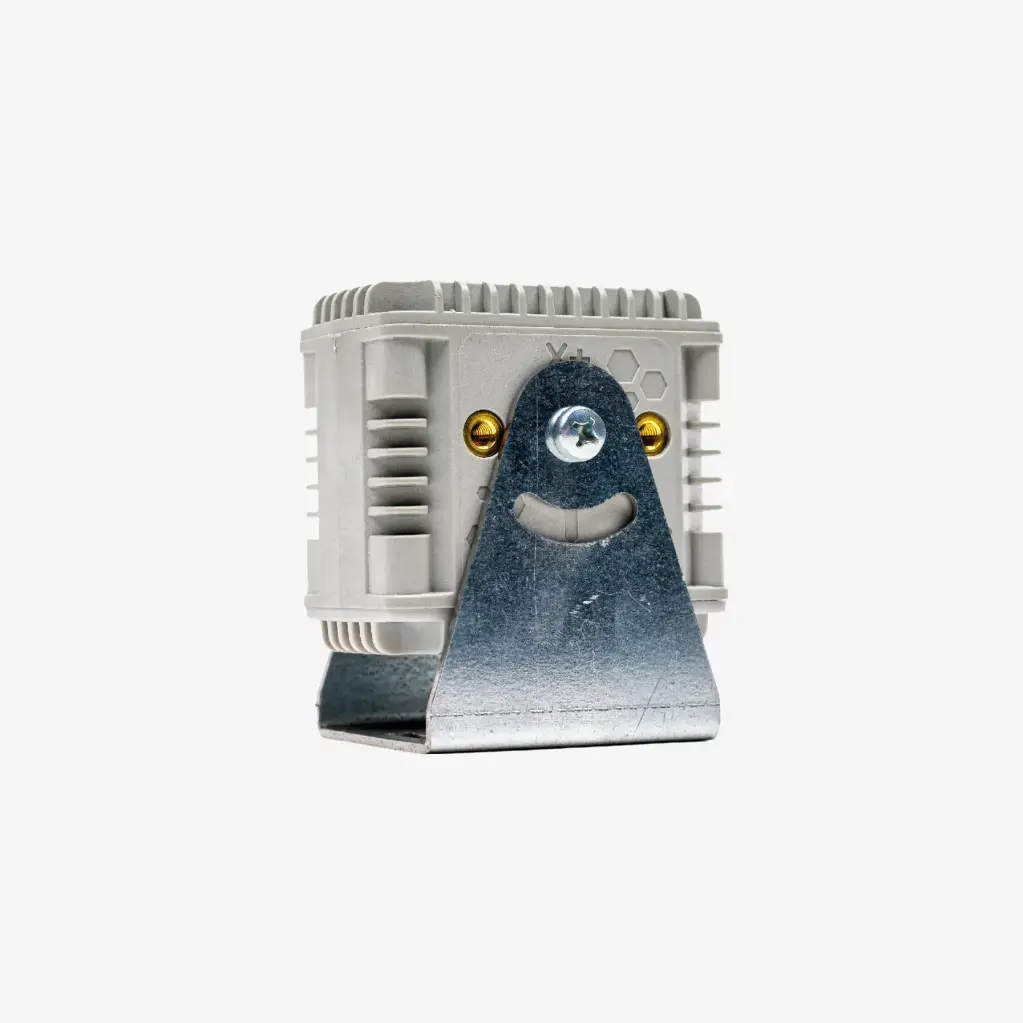

The DELTA R is a biaxial tilt sensor designed to monitor the movements of structures and walls with high precision.
With a resolution of 0.005° and a measurement range of up to ±10°, it stands out as a robust and reliable solution, even in the most demanding environments. Compact and durable (IP66 protection), the DELTA R is your ally for rigorous, continuous, and remote monitoring.
Connected to the FEELBAT mobile app, it allows you to monitor and analyze measurement data in real time directly from your smartphone. With an intuitive and user-friendly interface, the app provides easy access to detailed information while offering customization options to adjust settings according to specific needs.
Manage and centralize your projects for faster, more informed decision-making, even while on the go.
No more wasting hours on your reports! In just a few clicks, you can generate personalized PDFs tailored to your needs and preferences.
Le DELTA R se fixe facilement sur différents types de supports pour vous fournir une mesure sur deux axes.
Léger (350 g) et autonome (jusqu’à 7 ans d’autonomie avec une seule batterie), il est conçu pour être rapidement opérationnel. Sa conception robuste et son système breveté garantissent une installation simple et fiable, pour un suivi immédiat de vos infrastructures.
Power Supply
Batteries 3,6V-17Ah
Measurement, Precision, Resolution
Measurement : from 0 to 25 mm / ± 1 mm
Precision : 0.005° angle / 0.5° T
Resolution : 0,005° - 0,5°
Connectivity
LPWAN Network
Bluetooth
Internal Memory
Up to 250,000 measurements
Dimensions & Weight
Dimensions : 8x8 cm; Thickness 5 cm
Weight : 350g
Protection
IP66
